The life of your dairy begins with milking cows gently, quickly and completely.

BOUMATIC ROTARY MILKING

PARLOURS

We work with you to get the best results on your farm.
Döner sağım sistemi, Boumatic Türkiye

Rotary  milking parlours

BouMatic can supply the most suitable, automated milking system for any milking parlour. Choose from four rotary parlours, or maximise cow traffic flows and comfort with a parallel parlourHerringboneparabone and swingover milking parlours are other options. BouMatic’s crowd gates, mobile HandyFloor and sorting systems make milking even easier.

XCALIBUR 360EX

MAXIMIZE YOUR PERFORMANCE

This is the ultimate in rotary milking systems. Built for continuous, around-the-clock milking, the Xcalibur 360EX is ruggedly built and precision engineered to deliver unrivalled throughput and maximum efficiency for the dairy operation.

It’s drive system, central pivot and swivel, nylon rollers and massive double I-beam drive rail are the roughest and most reliable in the business. A contemporary, robust design and rugged construction give the Xcalibur 360Ex lasting durability and value.

This rotary, available in a basement version from 40 to 80 stalls and non-basement version from 32 and 40 stalls, is ideal for commercial farms with herds from 1200 to 4000 cows.

Boumatic Türkiye Süt Sağım Makinaları : Rotary : Döner
INVITING PARLOUR FOR THE COWS, IMPROVED COW FLOW
  • Low profile cabinets, concrete cow friendly deck
  • “V” Shaped entry fence also maximizes use of stalls and eliminates need to stop and slow down platform for slow cows
FASTER, MORE EFFICIENT INSTALLATION

Concrete work is made easier with no exposed system supports. This provides a significant reduction in time needed for installation.

IMPROVED OPERATOR EFFICIENCIES

After milking, units detach the milking unit, hose and pulsation tubes descend to rest below the platform – out of the way of exiting and entering cows.

CLEAN AND COMFORTABLE FOR THE OPERATOR
  • The platform has slight slope away from operator to flow water away from operator.
  • The operator stands in a perfectly ergonomic position. He has a clear visibility of the udders and an easy access to the automation displays and rotary controls
DESIGNED FOR OPERATOR SAFETY

The Xcalibur 360EX comes with offset rear rails on top and bottom. The bottom rail prevents kicks and the top rail provides better positioning for cows. Overall udder accessibility for the operator improves.

SMART SPEED CONTROL

The operator can easily regulate the platform speed from the display. The adjustable speed gives the operator more time for consistent prep routine. Functions can be controlled automatically or manually.

OPTIONAL FULL-SKIRT AROUND THE PLATFORM

To protect your equipment

  • Cleaner
  • Drier
  • Easier to clean

Maintains your equipment investment and gives a crisp, professional look whether using the standard option plastic skirt or the upgraded stainless-steel skirt.

DOUBLE I-BEAM RAIL SYSTEM IMPROVES PERFORMANCE

A massive circular double I-beam rail system and nylon rollers support the Xcalibur 360EX platform. Extremely durable nylon rollers require no lubrication. Improves performance through reduced risk of downtime.

INTEGRATED SYSTEM CONSOLE

Each stall has an integrated system console to house automation components and pulsators and provides easy access to CIP jetter cups.

RUGGED AND EFFICIENT

Built for ultimate strength and durability, the Xcalibur 360EX positions cows safely on the platform. Super strong radial arms link the platform to the centre pivot and the system’s smooth operation will be safe and easy on your cows. The Xcalibur 360EX is built for continuous, around-the-clock milking.

EFFICIENT SECURITY DEVICES

If a cow is slow and not on the platform, the cow entrance security system stops the rotary in order to prevent any risk of injury and automatically reverses to let the cow finish entering.

AVAILABLE WITH ELECTRIC DRIVE FOR INCREASED REDUNDANCY AND EFFICIENCY

Electric drives designed for Xcalibur 360EX are energy efficient, durable and reliable:

  • The platform is able to operate even if one motor fails.
  • Low consumption 1.1 kWh drives quietly and reliably spin the platform resulting in low operational costs.
HIGH RETURN ON INVESTMENT

Through increased cow comfort, operator efficiencies, improved equipment performance, and long-lasting construction, the Xcalibur 360EX provides dairy operators with unrivalled results and return on their investment.

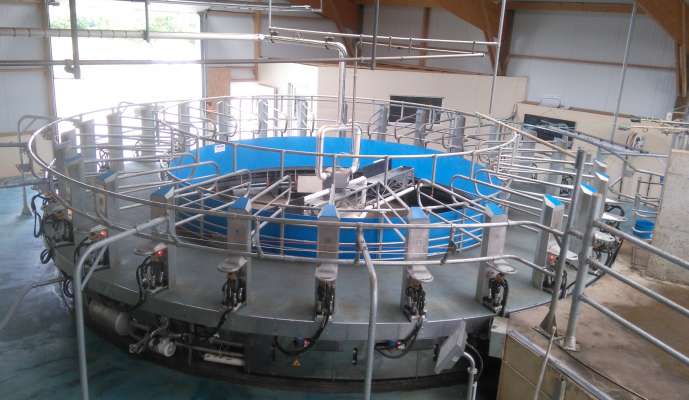

XPEDIA 360EX

THE ULTIMATE EXTERNAL ROTARY

The Xpedia 360EX external rotary parlour is specially designed for family dairy farms, enabling the dairy producer to milk on his own and to carry out a whole range of interactions with his herd. With 24 to 40 stalls, it is the ideal platform for herds with 80 to 300 cows.

Boumatic Türkiye Süt Sağım Makinaları : Rotary : Döner
EASY AND FLUID COW TRAFFIC

Cows enter calmly, quickly and in sequence thanks to:

  • The Texas one-way-entry gates
  • The positioning of the cows, at the opposite of the entrance.
  • The automated entry management: the rotary stops in case there is no cow at the entrance.
CALM AND COMFORTABLE COWS

Individual restraint separating the cows from each other during milking.

DESIGNED FOR MILKER'S COMFORT

Ergonomic operator positioning for enhanced comfort throughout all procedures, thanks to:

  • an inwards sloping platform, also ensuring a clean working environment
  • an udder within easy reach, the milker stands in an ergonomically good straight position
  • the single control button within easy reach, at arm height
ULTIMATE UDDER ACCESS
  • Milking from the rear in a 90-degree position with perfect milking cluster positioning. Milker and cow are close to each other.
  • Stall with 2 rear rails offset by 13°, placing the cow and her udder in an optimal milking position.
  • Optimum, well-balanced cluster positioning without special devices.
LIMITLESS PERFORMANCE

This rotary can be equipped with 24 to 40 stalls and can milk 120 to 300 cows an hour. You can gain 2 minutes per rotary turn and increase from 24 to 40 cows more per hour.

SMART AND EFIFCIENT
  • Touchscreen within easy reach for complete platform and milking routine management. You can easily set and manage your own working speed.
  • Smart speed control: smart automatic speed slowing system. The rotary system slows down when a cow has not finished.
  • The second turn option allows you to customize your milking routines when needed.
UNCLUTTERED DESIGN
  • Touchscreen within easy reach for complete platform and milking routine management. You can easily set and manage your own working speed.
  • Smart speed control: smart automatic speed slowing system. The rotary system slows down when a cow has not finished.
  • The second turn option allows you to customize your milking routines when needed.
RELIABLE AND ROBUST

Reliable, maintenance-free system designed to last. The track has 2.2 Teflon rollers per stall, which is based on a 24/7 rotary design. The load capacity is 30% higher than traditional platforms and the drive system has a low electric consumption (0.75kW).

SECOND TURN SYSTEM AVAILABLE

The BouMatic Second Turn system works very simply. If needed, a cow can be retained on the rotary milking parlour. To do this, via a dispenser provided for this purpose, a bar is slid behind the milking stall to retain the cow. This second turn can be programmed either automatically if the SmartDairy controller detects an absence of milk or milking in progress; or manually if the operator wishes to see a cow again for an intervention.
Thanks to its simple design (few moving parts), the Second Turn by BouMatic will be robust over time with low maintenance.

Moreover, this system can be installed on a new machine as well as on existing equipment.

SAFE MILKING
  • The Xpedia 360EX has a safety system around the whole rotary system, enabling the operator to stop and start the platform from any position.
  • Smart Security System: automatic stop and reverse device. If a cow enters too slowly or hesitates, the system stops, reverses and restarts automatically.
  • Stall with 2 rear rails offset by 13°, protecting the milker against back kicking.

XPEDIA 360IX

THE ULTIMATE INTERNAL ROTARY

Combining the best of parallel, herringbone and tandem designs, this platform provides the most relaxed milking and quickest entrance and exit traffic. Premium comfort and safety for the cows as well as for the milker is combined with system efficiency to ensure the highest quality of the end product.

The system can milk 50 to 800 cows and the platform is available with 16 to 40 stalls, reducing milking time and operator labour costs. From 80 to 200 cows per hour, you can reach exceptional operator performance. Xpedia 360IX maximizes your parlour performance.

Boumatic Türkiye Süt Sağım Makinaları : Rotary : Döner
EASY MILKING & GOOD OVERVIEW

Enhanced comfort for cows and operators through design. A good overall view of all the cows allows you to do fertility and health controls during milking if required.

EASY COW FLOW

Special Attention has been given to the entrance and exit design, creating a calm atmosphere in your milking parlour. The cow’s entry onto the platform is easy and safe. The door’s adjustable curved shape and overall design prevents injury or discomfort. Exiting is equally stress-free and safe. Since the animals are positioned in a 60° position, facing the exit, they leave the platform in a smooth, natural movement, allowing the work flow to continue without interruptions.

ULTIMATE UDDER ACCESS

Through the zigzag curbing design, operators have the best access to the udder for rear or side milking. The slight inclination of the concrete floor encourages the cow to stand close to the milker in an open stance, offering the ultimate udder access.

FLEXIBLE READY FOR GROWTH

The only platform where up to four milking points can be added as you grow your herd. To expand your production, all it takes is one more turn and 10 to 15 minutes of extra work. No additional investments are necessary. 4 access points provide an exclusive secure passage outside the platform avoiding expensive investments in a tunnel construction. Capacity can be further increased by converting the patented access points into extra milking stalls.

REDUCE MILKING TIMES AND OPERATOR LABOR COSTS

The system can milk from 50 to 800 cows and the platform is available with 16 to 40 stalls. From 80 to 200 cows per hour, you can reach exceptional operator performance.

DURABLE AND RELIABLE DESIGN

The Xpedia 360IX is a reliable, maintenance-free milking system designed to last. A large steel I-beam girder supports a steal substructure that carries a reinforced concrete deck approximately 13 centimetres thick. The platform rides on precision machine steel rollers, each of which is designed to support over 11 tons. BouMatic has installed over four hundred rotary systems worldwide in nearly twenty years.

IN-PARLOUR FEEDING OPTION AVAILABLE

In-parlour feeding is seamlessly integrated with the stall structure. Feed is delivered accurately to the animal in a safe and comfortable environment. Single or individual rations are possible – up to two feeds.

SMART SPEED CONTROL

The rotary system slows down by itself when a cow has not yet finished. Cow throughput is optimized.

SMART SECURITY SYSTEM

The Xpedia 360IX has an automatic stop and reverse device. When a cow delays entering,the system stops, reverses and starts again automatically. The cows always enter under supervision without intervention of the milker.

ADAPTED TO YOUR WORKING SPEED

You have complete control over your working speed. You can speed up, slow down, stop or reverse at any time.

STREAMLINE 360EX

THE ULTIMATE RUGGED AND POWERFUL EXTERNAL ROTARY

The Streamline 360EX external rotary milking platform is designed for commercial dairy farms and large family farms milking 250 to 2,000 cows. The uncluttered platform design with new integrated cabinets at each stall is the foundation of the Streamline 360EX’s innovative concept.

Boumatic Türkiye Süt Sağım Makinaları : Rotary : Döner
INCOMPARABLE COW TRAFFIC

Innovatively designed entrance lane for improved function, comfort and efficiency. The open-concept vision, with low profile cabinets and large openings, invites the eager cow to the platform.

The innovatively V-shaped fence has multiple advantages:

  • an even easier entry

  • maximizes use of stalls

  • eliminates need to stop and slow down platform for slow cows.

SAFE AND COMFORTABLE FOR THE OPERATOR AND THE COW
  • Operator safety: Offset top and bottom rear rails prevent kicks and ensure a perfect cow positioning with ultimate udder access.
  • Cow safety: Cow entrance security system stops the rotary when a cow enters too slowly and is not entirely on the platform. This ensures cow safety without impacting cow flow and milking performance.
ERGONOMIC PLATFORM
  • Perfectly straight operator positioning
  • Safe work place
  • Clear visibility of udder and teats
  • Easy access to the automation display and rotary controls
STRONG & HEAVY-DUTY PLATFORM

The platform moves on circular double-I-beams and on custom designed nylon rollers without lubrication. The platform assembly turns on a drive rail.

INTEGRATED CABINET AT EACH STALL

Housing automation components, controls, cylinders and displays as well as a jetter tray which remains closed during milking for perfect hygiene.The cabinets have a low profile, offering a perfectly ergonomic position. They are galvanized, for long life.

SMOOTH AND FLEXIBLE OPERATION

Electric drive system with adjustable speed allows for an efficient and durable external rotary option. This gives the operator more time for consistent prep routine. The operator can easily regulate the platform speed from the display.

  • Speed up
  • Slow down
  • Stop
  • Reverse

All functions are controlled automatically or manually.

OPTIONAL FULL-SKIRT AROUND THE PLATFORM

To protect your equipment

  • Cleaner
  • Drier
  • Easier to clean

Maintains your equipment investment and gives a crisp, professional look whether using the standard option plastic skirt or the upgraded stainless-steel skirt.

SECOND TURN SYSTEM AVAILABLE

The BouMatic Second Turn system works very simply. If needed, a cow can be retained on the rotary milking parlour. To do this, via a dispenser provided for this purpose, a bar is slid behind the milking stall to retain the cow. This second turn can be programmed either automatically if the SmartDairy controller detects an absence of milk or milking in progress; or manually if the operator wishes to see a cow again for an intervention.
Thanks to its simple design (few moving parts), the Second Turn by BouMatic will be robust over time with low maintenance.

Moreover, this system can be installed on a new machine as well as on existing equipment.
